智能鋼筋螺紋滾絲自動化生產線

2024/11/06 產品技術 11

高效率

12秒完成一根鋼筋滾絲（兩個絲頭）。
凈加工8小時可加工4000個絲頭。
單天加工鋼筋滾絲破百噸。

高精度

采用雙頭同時鋸切下料設置，鋼筋定尺下料，長度誤差1mm。

高品質

絲頭標準化控制，螺紋精度可達6f級。
絲頭加工質量滿足規范要求，解決鋼筋滾絲質量缺陷，“零”返工。

低耗材

自主研發鋼筋剝肋、滾絲刀具，超長使用壽命，鋼筋單個加工刀具成本不足0.2元。
超長耐用度可保證刀具一個月甚至幾個月不用更換。

產品介紹

GLX-16-40型智能鋼筋螺紋滾絲自動化生產線。其主要結構包括設備機體、動力頭部分、進給系統、夾緊裝置、自動送料、承料機架、撥料機構、自動定長行走系統、液壓系統、電氣系統、冷卻系統、以及磁力式排屑器等部分組成。該機床設計精良，性能穩定，可廣泛應用于HRB400、HRB500 Φ16-Φ40各種規格鋼筋直螺紋加工。

序號	項目	參數	備注
1	鋼筋加工規格	Ф16- Ф40 mm	滾絲輪分為兩種規格（P=2.5、3.0）
2	鋼筋加工長度	1.5-12.0m
3	螺紋加工精度	長度：±1mm；螺紋：6級
4	加工效率	12-20秒/根，雙頭	包括剝肋、滾絲；保證供料、連續運行情況下
5	電源動力需求	380V/50Hz
6	剝肋頭轉速	275轉/分鐘
7	滾絲頭轉速	175轉/分鐘
8	電機功率	40KW	包括機械動力頭、液壓系統、送料機構
9	場地需求	12×16米

應用場景

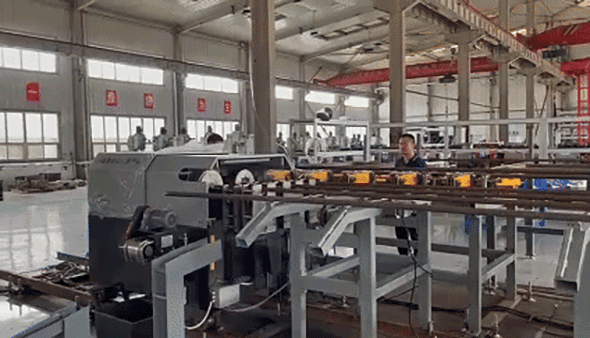

結構精巧

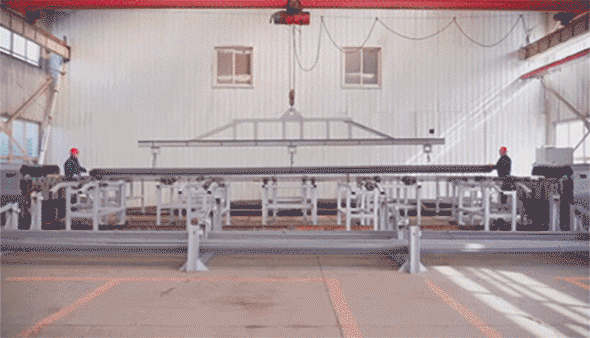

占用空間?。?2m*16m），對場地空間要求低，模塊化設計易于拆裝，運輸轉場方便，全程僅需兩人操作。

動力機頭

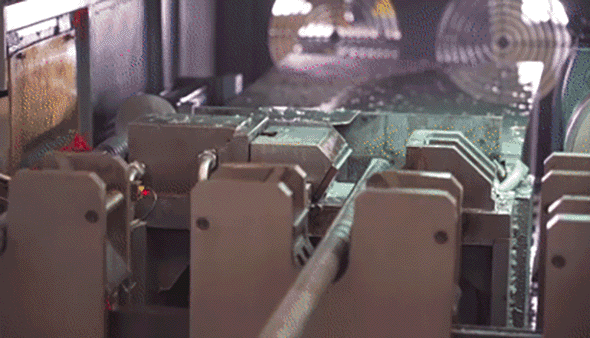

由鋼筋剝肋機頭、鋼筋直螺紋滾絲機頭兩部分組成。為公司自主研發擁有全部知識產權。剝肋刀具采用自主研發的硬質合金耐磨涂層技術，高轉速設計可有效保障鋼筋剝肋尺寸的穩定性，加工效率5s/頭。螺紋滾絲頭采用由公司自主研發的自動張刀，可實現螺紋滾壓后自動張刀，無需反車退刀，加工時間縮短一倍，加工效率5s/頭。

夾緊裝置

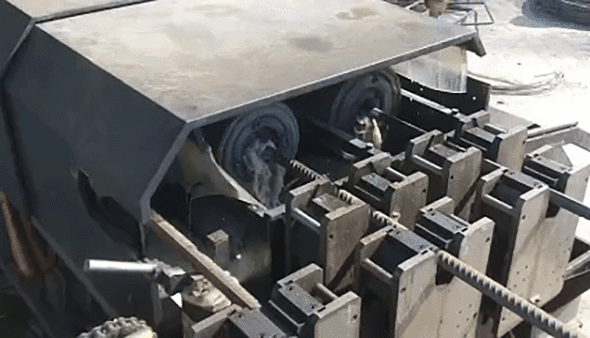

由定鉗、動鉗兩組夾緊裝置組成，通過“手遞手”的鋼筋步進傳遞方式，實現鋼筋水平精準送料，只需2秒即可完成鋼筋在剝肋及滾絲兩道工序間的轉序，物料移送效率極高。

自動定長行走系統

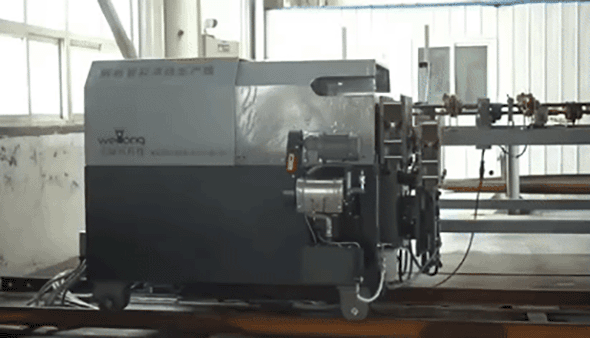

通過系統設定不同鋼筋加工長度，由伺服行走電機驅動單臺鋼筋滾絲設備自動高速行走至加工位置，控制精度可達±1mm 。長度調整方便，可滿足不同長度的加工需求。

冷卻系統

采用內出水冷卻方式，通過噴嘴向刀具噴涂高效冷卻液，以減少切削熱的產生，同時可有效清除加工鐵屑。既可以提高生產效率，降低生產成本，同時還可以提高切口質量，延長刀具使用壽命。
