解決方案產品技術新聞動態

鋼筋錨固技術產品

2021/03/07 產品技術 4248

鋼筋與混凝土之間的錨固是混凝土結構中的基本問題之一，它對結構中鋼筋強度的發揮、裂縫控制、配筋構造以及結構的安全性均有重要影響。

產品介紹產品規格

? ? ? ? 在鋼筋混凝土結構中，鋼筋目前常用的錨固方式是使用末端帶彎鉤的構造，90°或135°彎鉤鋼筋雖然在一定程度上加強了鋼筋錨固性能、減小了錨固長度，但是彎折或較大的彎弧半徑構造要求經常帶來許多問題，如造成梁-柱節點區鋼筋擁擠, 彎折或彎鉤與其他鋼筋的布置互相干擾,構件尺寸不能滿足錨固長度要求等等。在使用大直徑鋼筋時，這些矛盾更加突出。而鋼筋機械錨固技術能很好地解決這個問題，在保證鋼筋機械錨固性能的基礎上，優化了鋼筋錨固條件，減少了鋼筋錨固長度，節約了錨固用鋼材，方便施工，提高混凝土澆筑質量。同時，鋼筋機械錨固也是建筑工業化、鋼筋部品化施工所不可或缺的產品技術。

應用場

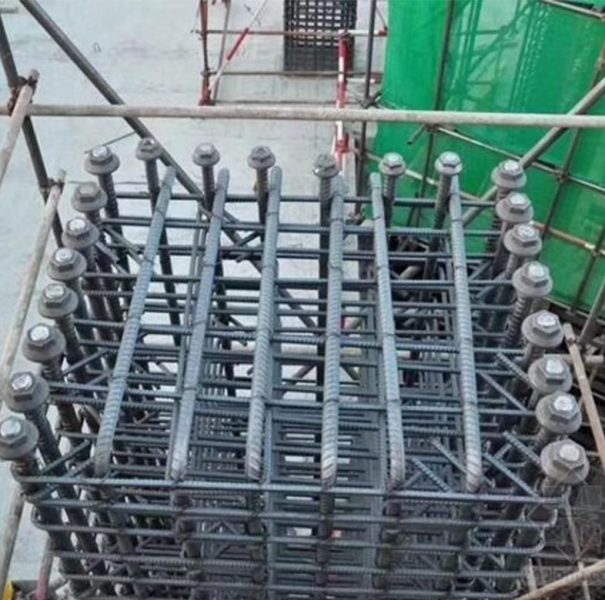

代替?zhèn)鹘y(tǒng)彎筋，用于框架結構梁柱節點；
代替?zhèn)鹘y(tǒng)彎筋和箍筋，用于簡支梁支座；
用于橋梁、水工結構、地鐵、隧道、核電站等各類混凝土結構工程的鋼筋錨固；
建筑工業化中的（構建、鋼筋）部品鋼筋彎筋錨固處；

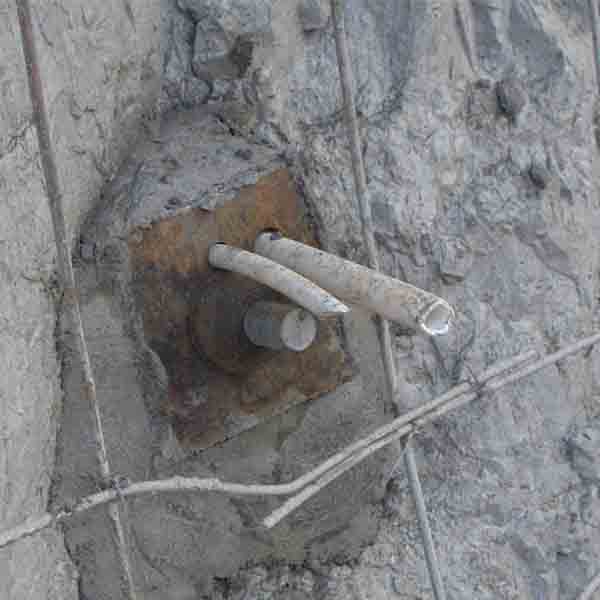

用作鋼筋錨桿(或拉桿)?的緊固件。

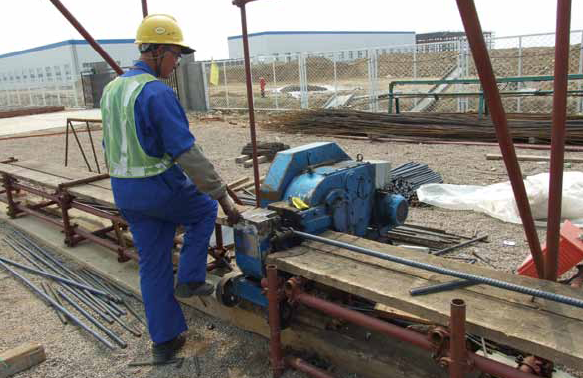

工藝

鋼筋端部切平

鋼筋端部剝肋、滾絲

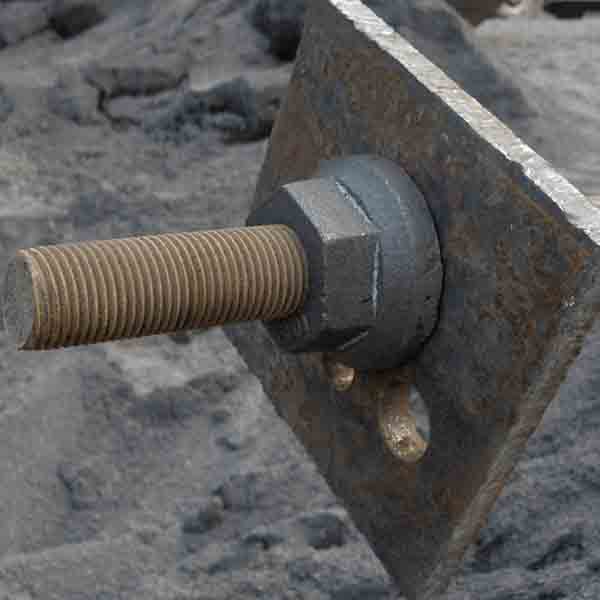

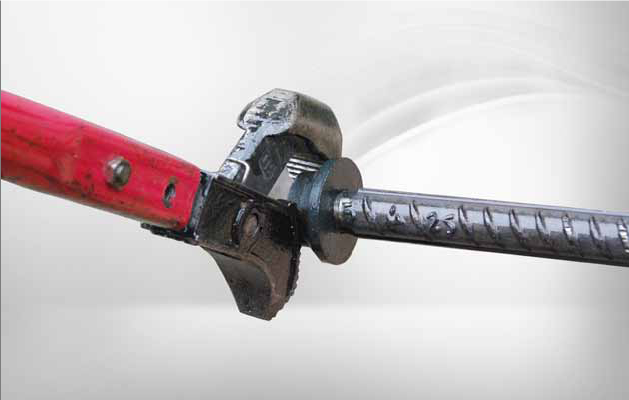

安裝錨固板

產品優勢

質量可靠 --- 錨固性能好，可充分發揮鋼筋強度，有利于更高強度鋼筋的使用；
簡單高效 --- 工藝簡單，工效高，螺母與墊片合二為一，與鋼筋直螺紋連接，操作方便，加快鋼筋工程施工速度；
節能降耗 --- 可減少或取消鋼筋錨固長度，節約40-50%的錨固用鋼材，降低鋼筋成本；
提高質量 --- 克服傳統彎筋錨固擁擠和混凝土澆筑困難問題，提高工程質量；
前景廣闊 --- 是建筑業十項推廣應用新技術之一，是北京市綠色建筑適用技術之一；
前景廣闊 --- 是建筑業十項推廣應用新技術之一，是北京市綠色建筑適用技術之一；

鋼筋錨固板分類、規格

分類

加工方式

錨固板承壓面積與鋼筋公稱面積之比?

錨固承力

部分錨固板

鑄造/鍛造

＞4.5

錨固區段鋼筋與混凝土粘結力+錨固板下混凝土局部承壓力

全錨固板

鑄造/鍛造

＞9.0

全部依靠錨固板下混凝土局部承壓里

示意圖	鋼筋直徑	螺紋尺寸	部分錨固板		全錨固板
	鋼筋直徑	螺紋尺寸	外徑(D)	厚度(H)	外徑(D)	厚度(H)
	16	M16.55X2.0	38	16	51	16
	18	M18.60X2.5	43	18	58	18
	20	M20.60X2.5	48	20	64	20
	22	M22.60X2.5	52	22	70	22
	25	M22.65X3.0	60	25	80	25
	28	M28.65X3.0	66	28	89	28
	32	M32.65X3.0	76	32	102	32
	36	M36.65X3.0	85	36	115	34
	40	M40.65X3.0	95	40	127	40
	50	M50.65X3.0	118	50	159	50
